Install a new label in the shelf rail

Labels are fitted into shelf rails so product information and pricing can be viewed at the point of selection. Correct installation ensures reliable operation and protects the label hardware.

Fit the label to the rail

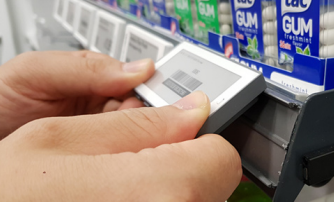

1. Push the top of the label into the top rail.

   Make sure the button is positioned at the bottom left of the tag.



2. Press the bottom corners of the label to secure it.

   Do not press the screen. This can damage the label.



3. Confirm the label clicks into place.

4. If the screen is blank, press the button on the bottom of the label for two seconds to wake the label.
